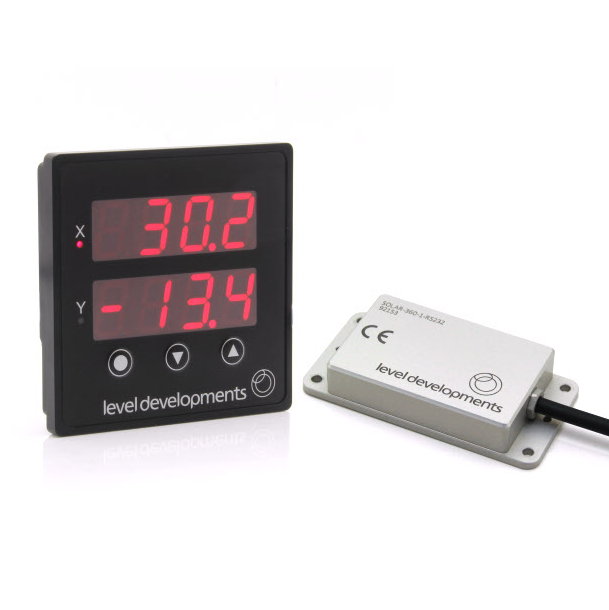

PDTS-SOLAR2-01 – Dual Axis ±30° SOLAR Inclinometer with Panel Mount Tilt Switch Display and 10m cable

Description PDTS-SOLAR2-01 – Dual Axis ±30° SOLAR Inclinometer with Panel Mount Tilt Switch Display and 10m cable Product Specification Parameter Value Unit Number of Axis 2 – Range ±30 ° Resolution 0.001 ° Accuracy at 20°C ±0.030 ° Uncompensated Temp Error 0.0015 ° / °C Accuracy at -20 – 70°C ±0.120 ° Display Type 2 x 4 digit LED – Display Output 2 x SPCO Relay and USB – Output Format RS232 – Power Source External DC supply – Frequency Response 1 Hz Technology Precision MEMS –   ELECTRICAL Parameter Value Unit Supply Voltage (min) 12 V Supply Voltage (max) 30 V   MECHANICAL Dimension Value Unit Weight 245 Grams Sensor Size 75×37.5×15 mm Sensor Weight 45 g Sensor Case Material Anodised Aluminium – Display Size 72x72x23.5 mm Display Weight 200 g Display Case Material Anodised Aluminium – Cable Length 10 m   ENVIRONMENTAL Parameter Value Unit Operational Temperature Range -40 to 85°C °C Storage Temperature Range -40 to 85°C °C Sensor Seal Rating IP67 – Display Seal Rating IP65 (when panel mounted) –   AXIS ORIENTATION DIMENSIONS PDTS-SOLAR2_Brochure
